Easy Match

Model Name: Easy Match
Product Type: Vision, Software

Inrotduction

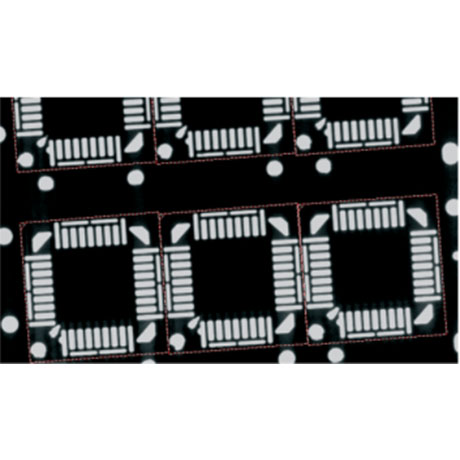

EasyMatch is a gray-level and color pattern matching library. It lets you train the system on a reference pattern and afterwards locate its occurrences in other images. This tool is very convenient when the position of a given part is unknown in the field of view, or if the presence of parts must be controlled. The library works by using normalized correlation method, i.e. measuring discrepancies between the pattern and the target image.

Features

Host PC Operating System:
 ● Open eVision is a set of 32-bit and 64-bit libraries that require a processor compatible with the SSE2 instruction set.
 ● Deep Learning Bundle is only available in the 64-bit Open eVision library.
 ● Open eVision can be used on the following operating systems:
  ◾ Windows 10 (32- and 64-bits)
  ◾ Windows 8 (32- and 64-bits)
  ◾ Windows 7 (32- and 64-bits)
 ● Since Open eVision 2.6, discontinued support of:
  ◾ Windows Vista 32-bits Service Pack 1
  ◾ Windows XP 32-bits Service Pack 3
  ◾ Windows Embedded Standard 2009 32-bits
 ● The Open eVision installer does not allow installation on virtual machines.
 ● Minimum requirements:
  ◾ RAM: 8 GB
  ◾ Display size: 800 x 600. 1280 x 1024 recommended.
  ◾ Color depth: 16 bits. 32 bits recommended.
  ◾ Between 100 MB and 2 GB free hard disk space for libraries, depending on selected options.
APIs
 ● Supported Integrated Development Environments and Programming Languages:
  ◾ Microsoft Visual Studio 2008® SP1 (C++, C#, VB .NET, C++/CLI)
  ◾ Microsoft Visual Studio 2010® (C++, C#, VB .NET, C++/CLI)
  ◾ Microsoft Visual Studio 2012® (C++, C#, VB .NET, C++/CLI)
  ◾ Microsoft Visual Studio 2013® (C++, C#, VB .NET, C++/CLI)
  ◾ Microsoft Visual Studio 2015® (C++, C#, VB .NET, C++/CLI)
  ◾ Microsoft Visual Studio 2017® (C++, C#, VB .NET, C++/CLI)
 ● Since Open eVision 2.5.1, discontinued support of:
  ◾ Borland C++ Builder 6.0 update 4 (C++)
  ◾ CodeGear Delphi 2009 (Object Pascal)
  ◾ CodeGear C++ Builder 2009 (C++)
  ◾ Microsoft Visual Studio 6.0 SP6 (C++, Basic)
  ◾ ActiveX API
 ● Since Open eVision 2.4.1, discontinued support of:
  ◾ Embarcadero RAD Studio XE4 and XE5 (C++, Object Pascal, 32 bits only)

Brand

Euresys
