Easy Gauge

Model Name: Easy Gauge
Product Type: Vision, Software

Inrotduction

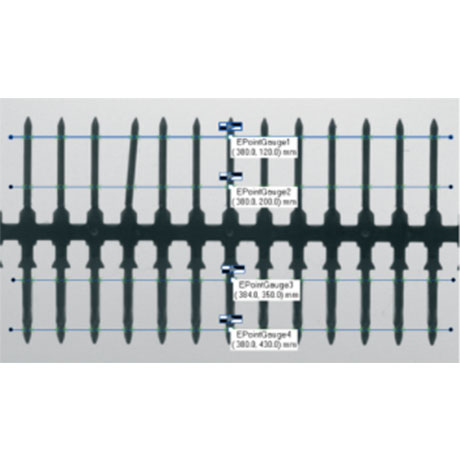

EasyGauge is a cutting-edge measurement and dimension control library for use in gauging and metrology applications. By relying on proven sub-pixel edge detection and shape fitting algorithms, it allows determining the dimension, position, curvature, size, angle or diameter of manufactured parts with an excellent accuracy. Robustness is ensured by powerful edge-point selection mechanisms that are intuitive and easy to tune, allowing measurement in cluttered images. In addition, EasyGauge also supports the automatic measurement of parallel sides, thus providing means of measuring the thickness of flat or bent objects, as well as the precise location of corners.

Features

Host PC Operating System:
 ● Open eVision is a set of 32-bit and 64-bit libraries that require a processor compatible with the SSE2 instruction set.
 ● Deep Learning Bundle is only available in the 64-bit Open eVision library.
 ● Open eVision can be used on the following operating systems:
  ◾ Windows 10 (32- and 64-bits)
  ◾ Windows 8 (32- and 64-bits)
  ◾ Windows 7 (32- and 64-bits)
 ● Since Open eVision 2.6, discontinued support of:
  ◾ Windows Vista 32-bits Service Pack 1
  ◾ Windows XP 32-bits Service Pack 3
  ◾ Windows Embedded Standard 2009 32-bits
 ● The Open eVision installer does not allow installation on virtual machines.
 ● Minimum requirements:
  ◾ RAM: 8 GB
  ◾ Display size: 800 x 600. 1280 x 1024 recommended.
  ◾ Color depth: 16 bits. 32 bits recommended.
  ◾ Between 100 MB and 2 GB free hard disk space for libraries, depending on selected options.
APIs
 ● Supported Integrated Development Environments and Programming Languages:
  ◾ Microsoft Visual Studio 2008® SP1 (C++, C#, VB .NET, C++/CLI)
  ◾ Microsoft Visual Studio 2010® (C++, C#, VB .NET, C++/CLI)
  ◾ Microsoft Visual Studio 2012® (C++, C#, VB .NET, C++/CLI)
  ◾ Microsoft Visual Studio 2013® (C++, C#, VB .NET, C++/CLI)
  ◾ Microsoft Visual Studio 2015® (C++, C#, VB .NET, C++/CLI)
  ◾ Microsoft Visual Studio 2017® (C++, C#, VB .NET, C++/CLI)
 ● Since Open eVision 2.5.1, discontinued support of:
  ◾ Borland C++ Builder 6.0 update 4 (C++)
  ◾ CodeGear Delphi 2009 (Object Pascal)
  ◾ CodeGear C++ Builder 2009 (C++)
  ◾ Microsoft Visual Studio 6.0 SP6 (C++, Basic)
  ◾ ActiveX API
 ● Since Open eVision 2.4.1, discontinued support of:
  ◾ Embarcadero RAD Studio XE4 and XE5 (C++, Object Pascal, 32 bits only)

Brand

Euresys
