Easy Matrix Code

Model Name: Easy Matrix Code
Product Type: Vision, Software

Inrotduction

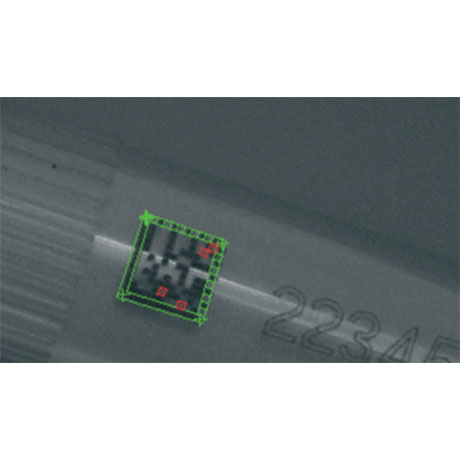

Data Matrix codes are widely used for parcel tracking and part identification in the semiconductor, pharmaceutical and mechanical industries. EasyMatrixCode is a fully automatic reader of 2D Data Matrix codes. It recognizes symbols of any size, contrast, location and orientation in a single operation. Error detection and correction algorithms are used to provide a reliable reading. EasyMatrixCode is fully compatible with the ANSI/AIM BC11-1997 standard.

Features

Host PC Operating System:
 ● Open eVision is a set of 32-bit and 64-bit libraries that require a processor compatible with the SSE2 instruction set.
 ● Deep Learning Bundle is only available in the 64-bit Open eVision library.
 ● Open eVision can be used on the following operating systems:
  ◾ Windows 10 (32- and 64-bits)
  ◾ Windows 8 (32- and 64-bits)
  ◾ Windows 7 (32- and 64-bits)
 ● Since Open eVision 2.6, discontinued support of:
  ◾ Windows Vista 32-bits Service Pack 1
  ◾ Windows XP 32-bits Service Pack 3
  ◾ Windows Embedded Standard 2009 32-bits
 ● The Open eVision installer does not allow installation on virtual machines.
 ● Minimum requirements:
  ◾ RAM: 8 GB
  ◾ Display size: 800 x 600. 1280 x 1024 recommended.
  ◾ Color depth: 16 bits. 32 bits recommended.
  ◾ Between 100 MB and 2 GB free hard disk space for libraries, depending on selected options.
APIs
 ● Supported Integrated Development Environments and Programming Languages:
  ◾ Microsoft Visual Studio 2008® SP1 (C++, C#, VB .NET, C++/CLI)
  ◾ Microsoft Visual Studio 2010® (C++, C#, VB .NET, C++/CLI)
  ◾ Microsoft Visual Studio 2012® (C++, C#, VB .NET, C++/CLI)
  ◾ Microsoft Visual Studio 2013® (C++, C#, VB .NET, C++/CLI)
  ◾ Microsoft Visual Studio 2015® (C++, C#, VB .NET, C++/CLI)
  ◾ Microsoft Visual Studio 2017® (C++, C#, VB .NET, C++/CLI)
 ● Since Open eVision 2.5.1, discontinued support of:
  ◾ Borland C++ Builder 6.0 update 4 (C++)
  ◾ CodeGear Delphi 2009 (Object Pascal)
  ◾ CodeGear C++ Builder 2009 (C++)
  ◾ Microsoft Visual Studio 6.0 SP6 (C++, Basic)
  ◾ ActiveX API
 ● Since Open eVision 2.4.1, discontinued support of:
  ◾ Embarcadero RAD Studio XE4 and XE5 (C++, Object Pascal, 32 bits only)

Brand

Euresys
