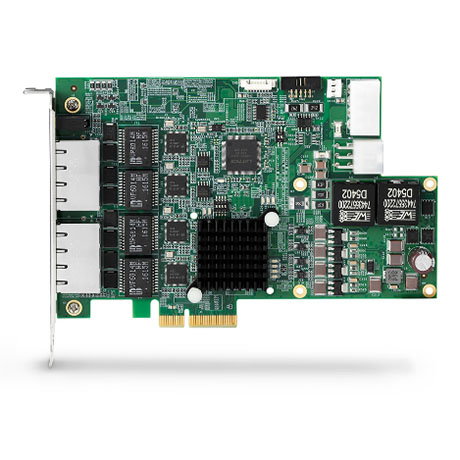

PCIe-GIE72/74

Model Name: PCIe-GIE72/74
Product Type: Vision, Frame Grabbers

Inrotduction

ADLINK's PCIe-GIE72/74 is PCI ExpressR x4 lane, GigE Vision PoE+ (Power Over Ethernet Plus) frame grabber supports 2/4CH independent Gigabit Ethernet ports for multiple GigE Vision device connections with data transfer up to 1 Gb/s per port. PoE+ technology provides up to 25.5W PoE power and automatic detection for stable and reliable connection between PoE+, PoE or non-PoE cameras and frame grabbers, reducing costs, simplifying installation, and easing maintenance burdens with excellent asset protection.

Features

● PCI Express® x4 compliant
● Support for 2/4 independent Gigabit Ethernet ports
● IEEE 802.3at for PoE+ (Power over Ethernet Plus)
● PoE protection and automated power budget control for enhanced asset protection
● Easy-to-use utility and API provided for PoE power management
● Multiple cards, multiple cameras, in a single system
● Wide operating temperature range from 0°C to +70°C supporting non-drop frame capture in extreme environments
● Up to 20/60/120W PoE power from PCIe bus/4-pin/6-pin Molex connector

Brand

Adlink
