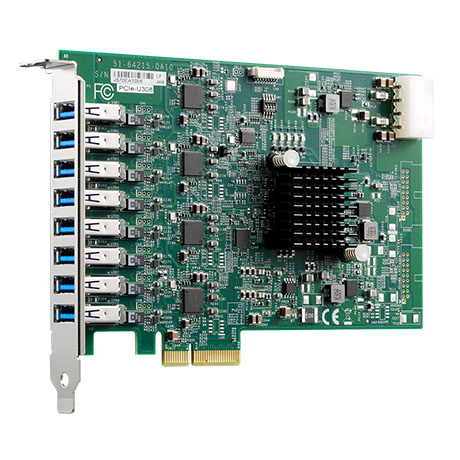

PCIe-U300

Model Name: PCIe-U300
Product Type: Vision, Frame Grabbers

Inrotduction

ADLINK's PCIe-U300 Series series is a PCI Express x4 Gen3 USB3 Vision frame grabber supporting 4/8/12 USB 3.1 Gen 1 ports for multiple USB3 Vision device connections with data transfer up to 5 Gb/s per port. The PCIe-U300 Series supports 5V and max. 1500mA current per port for external USB3 Vision industrial cameras. To guarantee industrial-grade high-bandwidth performance for each port, four independent Fresco FL1100 USB 3.1 Gen 1 host controllers with PCI Express x4 Gen3 interface allow each USB port to provide up to 5Gbps bandwidth when operating four ports simultaneously. Also supported is software-programmable per-port power on/off control for fault recovery operations. ADLINK's PCIe-U300 Series brings maximum convenience for interfacing with USB 3.0 devices for machine vision, factory automation, quality assurance, logistics, medicine, and security and traffic surveillance applications.

Features

● PCI Express x4 Gen3 compliant
● Host Controller, Fresco FL1100
● Compliant with USB 3.1 Gen 1 (identical to USB 3.0)
● 4/8 USB Type-A external ports (PCIe-U304/U308)
● 4 additional internal USB 3.0 ports by pin headers (PCIe-U308e only)
● Up to 18W USB power from PCIe bus (default)
● Up to 60W USB power supported by 4-pin Molex power connector
● 1500mA max. current per port
● Multiple cards, multiple cameras in a single system
● Easy-to-use API provided for software-programmable per-port power on/off

Brand

ADLINK
