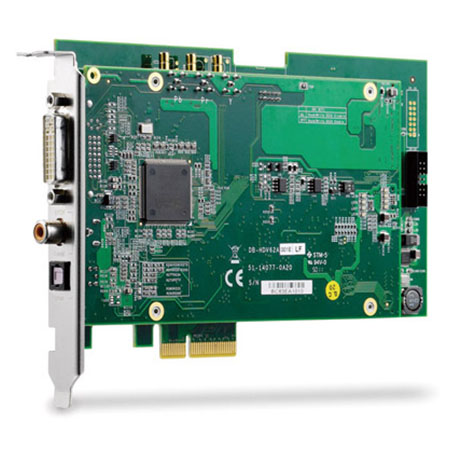

Model Name: PCIe-HDV62A
Product Type: Vision, Frame Grabbers


ADLINK's PCIe-HDV62A/PXIe-HDV62A series high definition video and audio capture cards enable single-card acquisition of full analog/digital video and digital audio signals. Featuring uncompressed full HD up to 1080p at 60 fps and 10-bit high-resolution ADC and HDCP support, the PCIe-HDV62A/PXIeHDV62A series deliver serious benefits and reduced TCO for applications requiring simultaneous capture from both video and audio sources, such as multimedia device testing and medical imaging. What's more, the PCIe-HDV62A/PXIe-HDV62A not only deliver uncompressed high-definition video data from DVI or HDMI, but also provide an analog video decoder comprehensively supporting RGB, CVBS, S-video and YPbPr, with an integrated audio decoder for HDMI and S/PDIF capture, providing a highly integrated solution.


● Uncompressed 1920 x 1080p, 60 fps video stream
● Support for CVBS, S-video, RGB and YPbPr video input
● Support for HDMI/DVI video and HDMI, S/PDIF audio inputs
● Support for 24-bit RGB or YUV 4:4:4
● Support for HDCP (PCIe-HDV62A/PXIe-HDV62A only)
● 32/64-bit Direct SDK support
