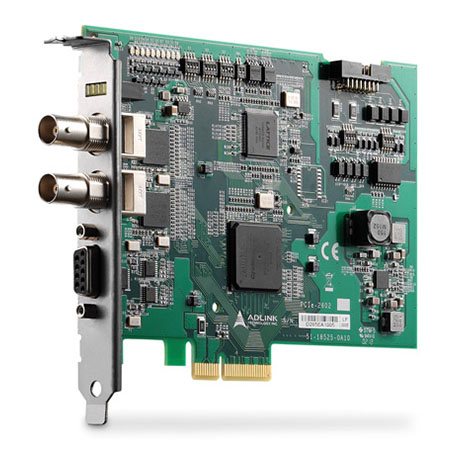

Model Name: PCIe-2602
Product Type: Vision, Frame Grabbers


The PCIe-2602 3G-SDI video/audio capture card, based on the PCI Express x4 interface, provides unparalleled features, enabling acquisition of 2 channels 3G-SDI for low latency, and uncompressed video data signals up to 1920x1080P/60fps (frames per second), and high accuracy color format support 4:4:4. The PCIe-2602, featuring 3G signal capture ability and support for highly accurate color formatting, is ideal for frame grab function in a wide variety of applications, including medical imaging and intelligent video surveillance or analytics. Thanks to 3G-SDI signal capability, ADLINK’s PCIe-2602 supports high accuracy color format, such as 12 bit 4:4:4 1080i/60fps or 10 bit 4:2:2 1080P/60fps, and when combined with a suitable 75Ω coaxial cable, 3G-SDI signals can be transmitted over 100 m, all with no need for changes to existing cabling, representing significant savings in construction costs. The included ViewCreator Pro™ utility enables setup, configuration, testing, and system debugging without requiring any software programming. As well, ADLINK's drivers ate compatible with Microsoft DirectShow, reducing engineering efforts and accelerating time to market.


● Support for 2-CH 3G-SDI video signal, up to 1920 x 1080P/60fps video stream
● Low latency, uncompressed video streaming
● High accuracy color format support, 12 bit 4:4:4 1080i/60fps or 10 bit 4:2:2 1080P/60fps
● Cabling distances up to 100m (w/ compatible 75Ω coaxial cable)
● Directshow support
● RS-485 and digital I/O provided
● PCI Express x4 compliant signal
● Connection status LED
