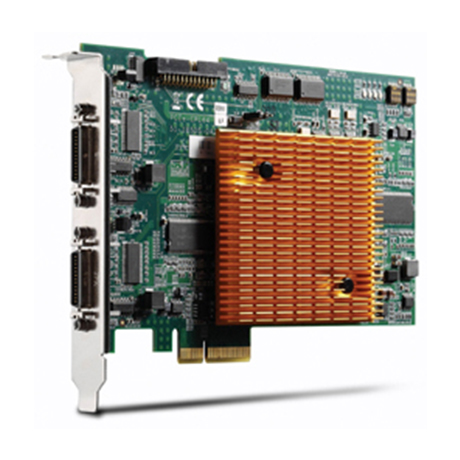

PCIe-CPL64

Model Name: PCIe-CPL64
Product Type: Vision, Frame Grabbers

Inrotduction

The PCIe-CPL64 is a PoCL (Power over Camera Link®) frame grabber that is based on the PCI Express® x4 interface, and supports two-channel Camera Link “base” configurations, multi-tap area and line scan cameras. The PCIe-CPL64 frame grabber strikes a perfect balance between performance and cost. It is capable of simultaneously image acquisition from two completely independent. Camera Link base configuration cameras, and supports image transfer rates up to 512 MB/s.

Features

● PCI Express® x4 compliant
● Supports 2-CH Camera Link® Base configuration
● Acquisition pixel clock rates up to 85 MHz
● PoCL (Power over Camera Link® ) safe power compliant with auto detection
● 128 MB of 200 MHz DDR SDRAM for acquisition
● 4 TTL Digital Input/Output, and 2 trigger Input
● Supports 64-bit memory addressing
● Two serial communication ports

Brand

ADLINK
