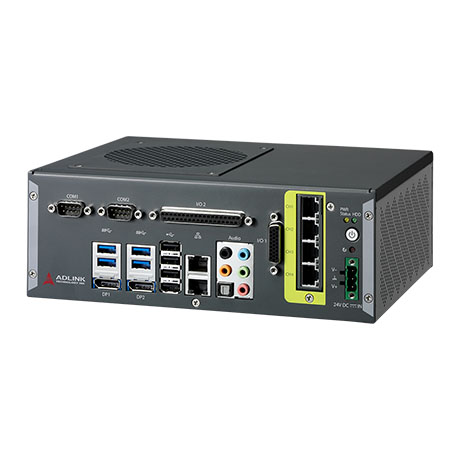

EOS-1300

Model Name: EOS-1300
Product Type: Vision, Embedded PC

Inrotduction

ADLINK’s EOS-1300 is a high performance compact vision system equipped with 6th Generation Intel® Core™ i7/i5/i3 processors and four independent PoE (power over Ethernet) ports, delivering data transfer rates up to 4.0 Gb/s. EOS-1300’s FPGA based DI/O provides programmable de-bounce filter, on the fly trigger, and user wiring Sink/Source DO and Encoder functions, making it the ideal solution for machine vision applications requiring high computing power and time deterministic solutions with minimal footprint. The EOS-1300 DI/O provides minimal and fixed latency without occupying CPU resources. The DI/O function provides APIs allowing programming for de-bounce filter of DI, delay time, and pulse width of DO and also advanced Encoder functions suitable for conveyor applications. The highly flexible design supports either Sink or Source DO via external wiring. With all I/O connectors on one side for easy installation, and the latest 6th Generation Intel® Core™ i7/i5/i3 processor, powerful and flexible DI/O, and compact size, the EOS-1300 is the perfect vision system for automation and machine vision.

Features

● 6th Generation Intel® Core™ i7/i5/i3 Processors
● Up to 4CH Gigabit PoE (Power over Ethernet)
● FPGA-implemented DI/O functions provide programmable de-bounce filter, on the fly trigger out and Encoder functions
● Configurable Sink or Source DO via external wiring
● Supports 12x isolated DI, 16x isolated DO, 2x encoder input, and 4x USB 3.0
● One-side I/O for easy maintenance
● On-board SHA-256 security EEPROM for license protection

Brand

ADLINK
